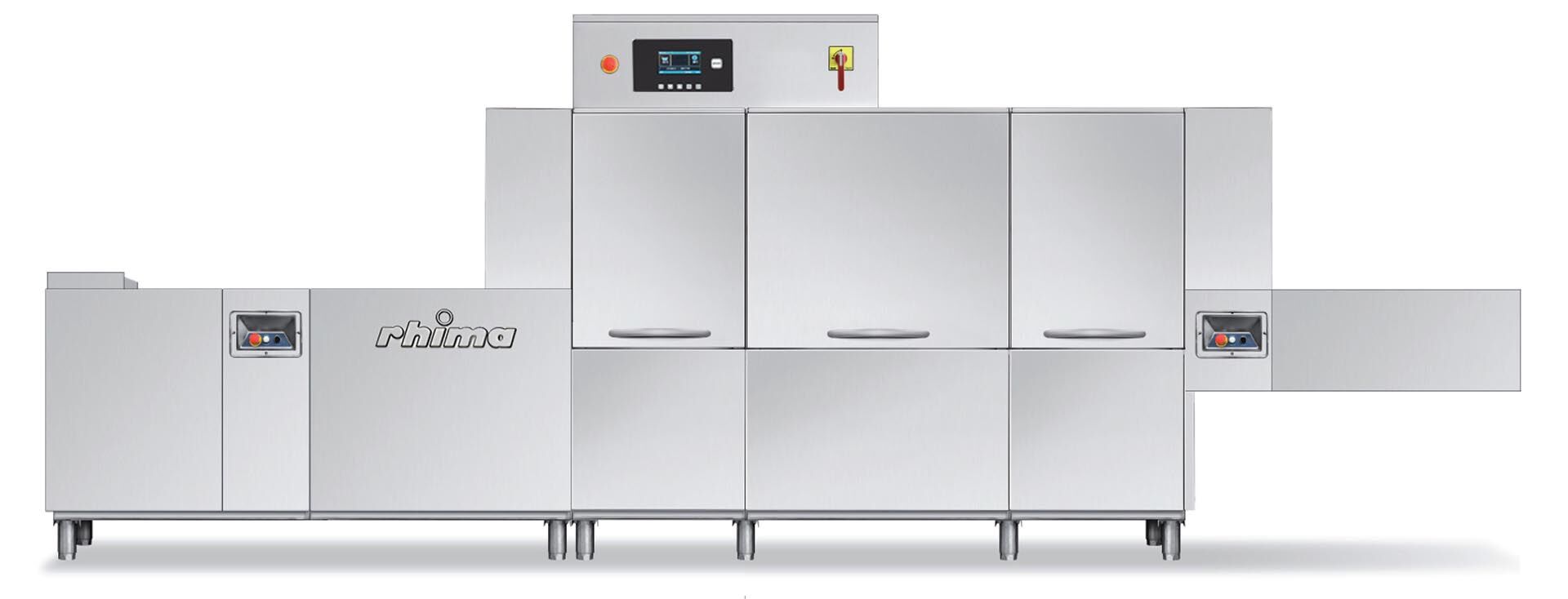

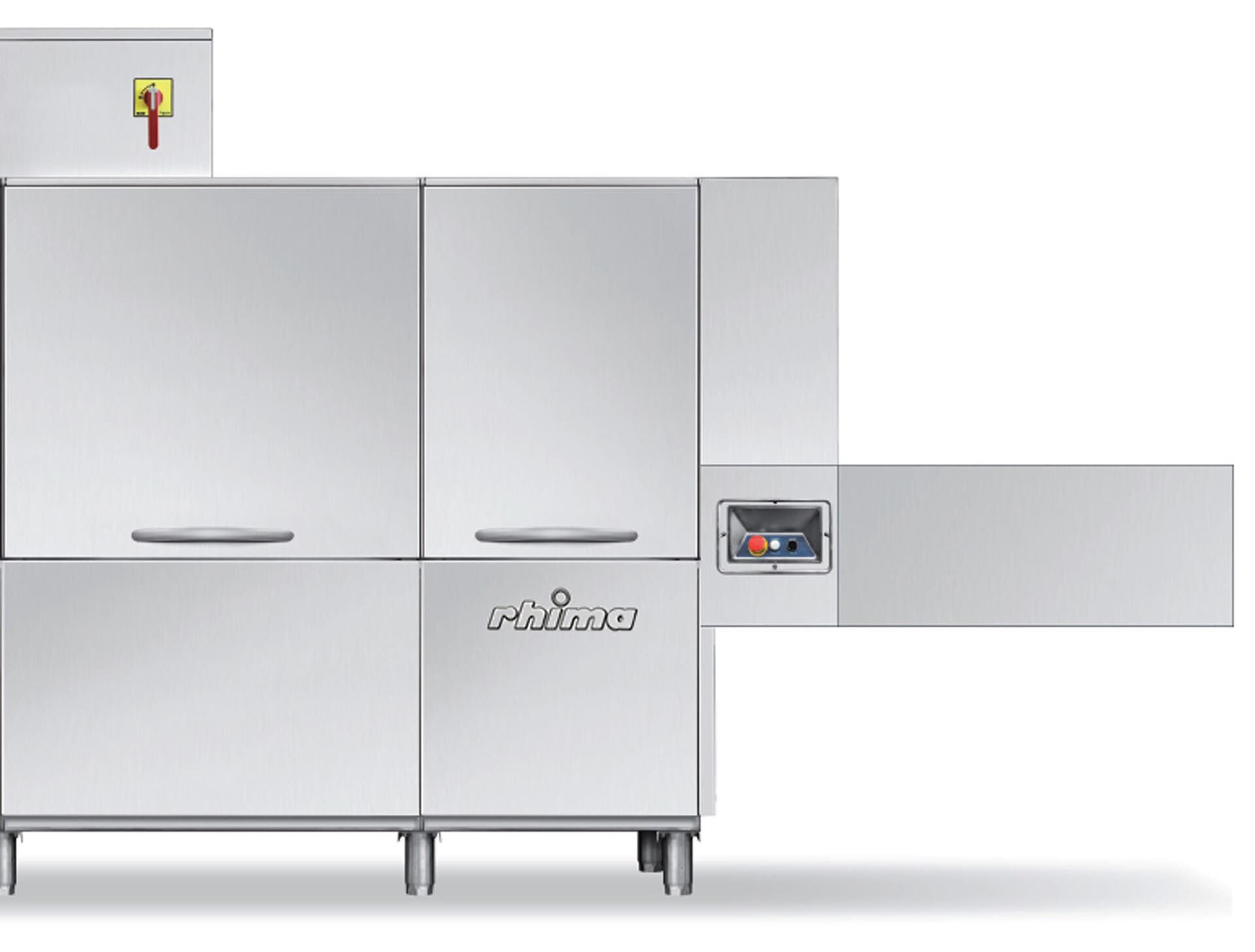

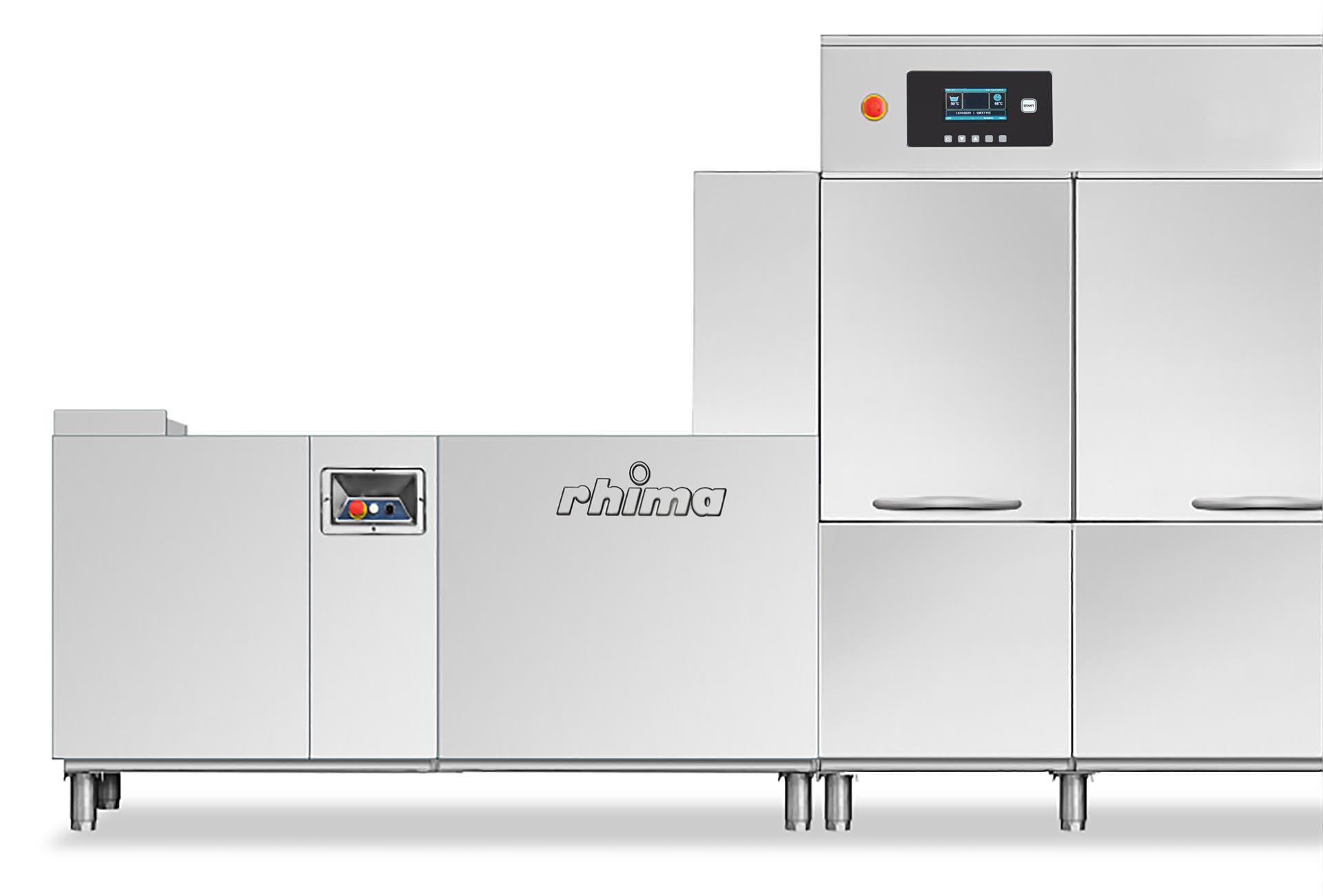

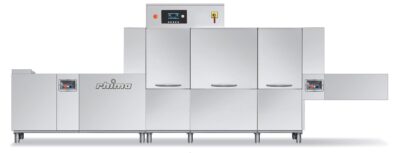

RF 510 Flight Type Dishwasher

The RF 510 (previously known as the QX 376 flight type dishwasher) can wash 2700 – 4080 dishes per hour. This dishwasher consists of a pre wash, wash and 2 rinse zones and has a usable belt width of 710mm and usable height of 450mm. Compliance with DIN 10510.

The RF 510 rinse water consumption is approximately 190 litres of water per hour.

Read More
Description

Optional Items:

  • Steam condenser
  • Heat Recovery units which supplies the flight type dishwashers with cold water (inlet water temperature between 8°C and 15°C) and to significantly save energy at the same time. The steam produced by the machine operation (otherwise lost in the room) is recovered and led through the heat exchanger (air – water). The energy of the steam is used to preheat up to 45°C the inlet water with a consequent reduction of energy consumption.
  • Detergent Dispenser which means that chemicals are able to be connected to the machine and are automatically dosed and injected into the wash cycle of the machine
  • HACCP supervisor which monitors and records the machine’s vital statistics
  • Automatic self cleaning cycle
  • Blowers
Benefits

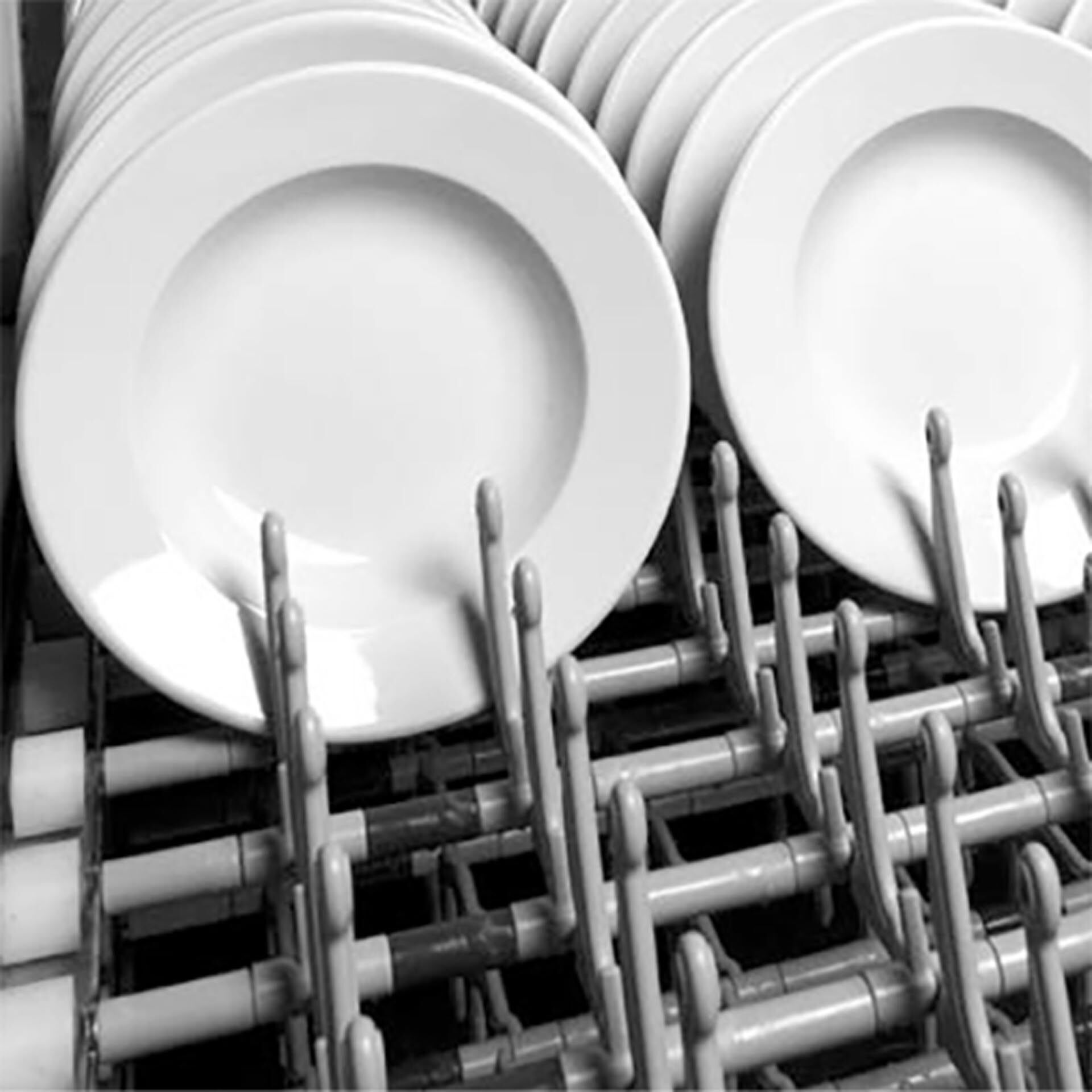

  • 6 different conveyor belts available, also with a cutlery lane which means that there are many options for different sized items.
  • Autotimer which allows the rack conveyor motor and all electrical options to be switched off after a pre-set lapse time of inactivity.
  • Insulated doors which helps to maintain a constant temperature in the washing chamber which in turn allows for a reduction of power consumptions for the boiler heating elements.
  • CPF which is a device that allows for user to easily adjust the water pressure in the prewash or wash phase depending on each users needs.
  • AIS 304 and 316 stainless steel which allows protection from aggressive cleaning agents and salty water.
  • The standard machines are electrically heated, steam is an option.
  • Wide inspection doors give full access to the wash zone.
