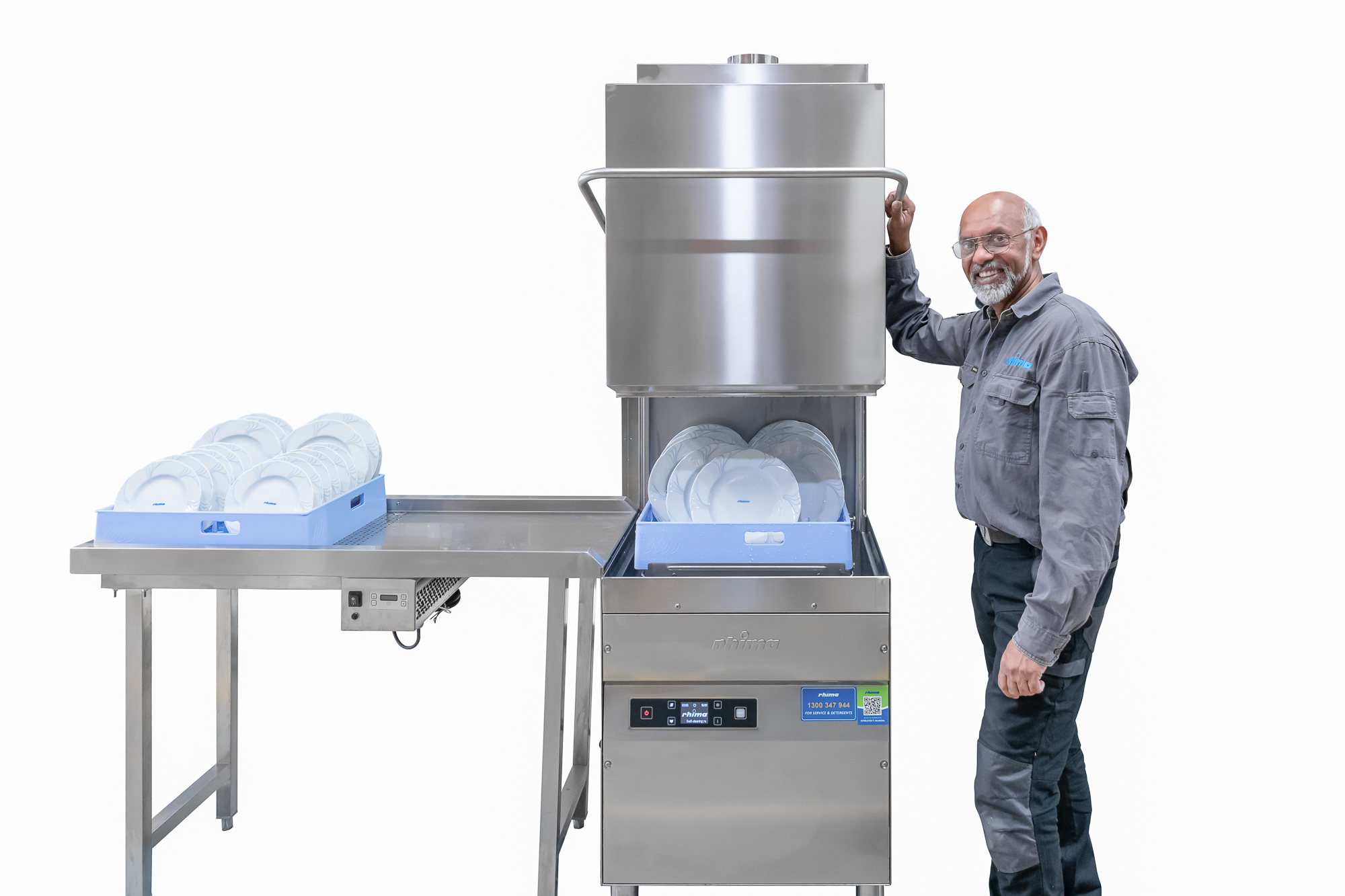

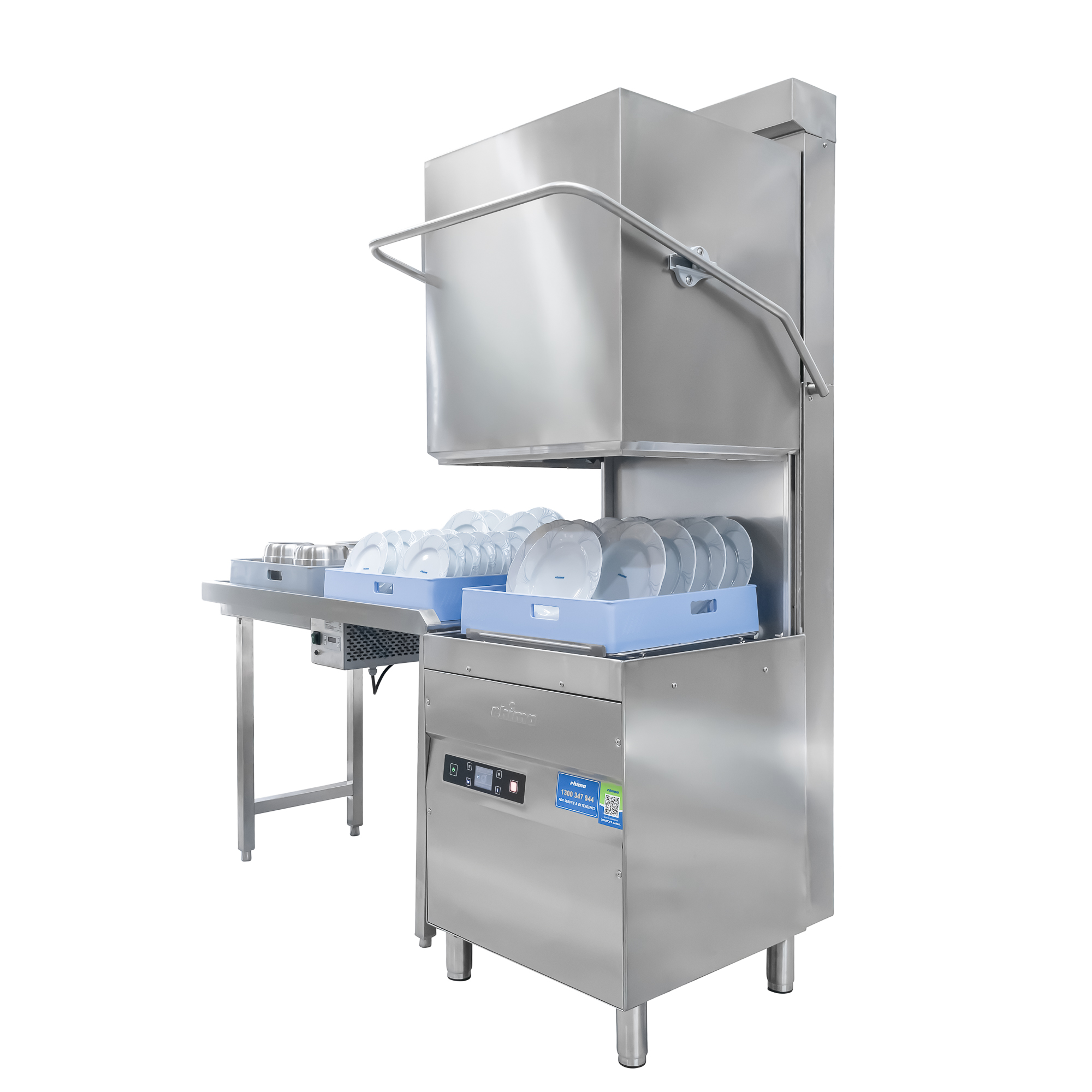

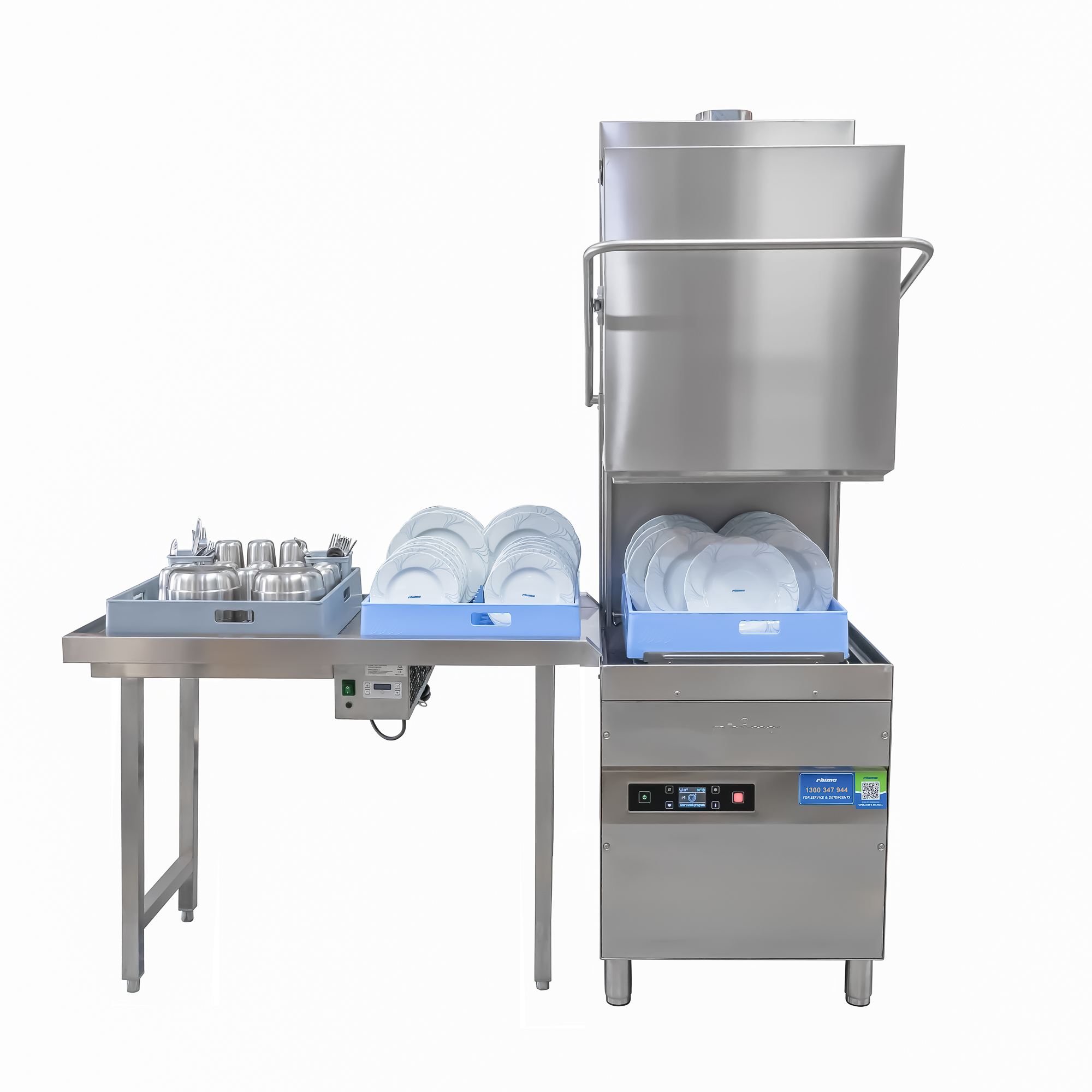

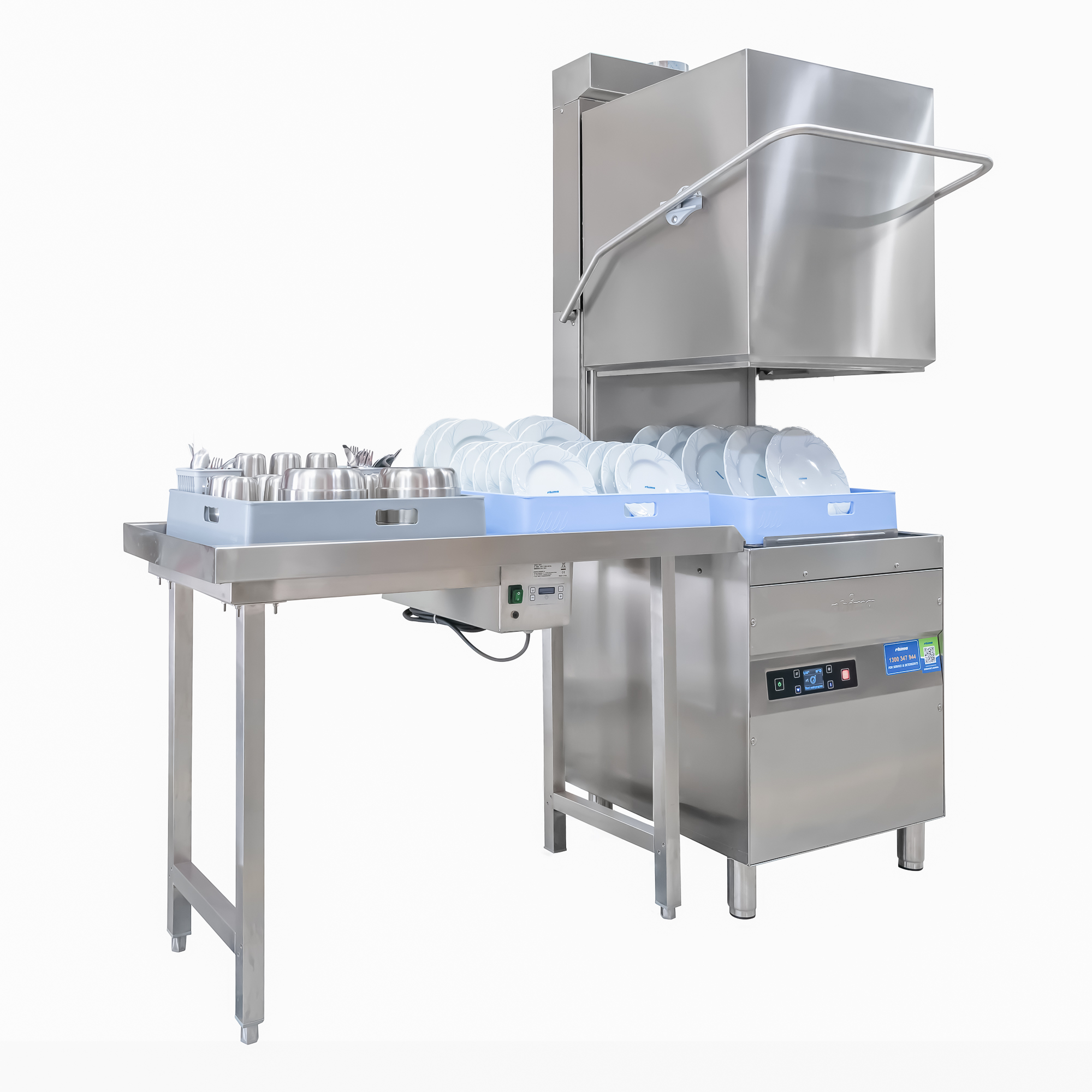

RH-60 HR Pass Through Dishwasher with Heat Recovery Unit

The RH-60 HR pass through dishwasher with Heat Recovery Unit comes with or without condenser and automatic hood. The Heat Recovery unit is an addition to our machines and eliminates the need for a separate extraction fan. It also gives savings of about 35% on energy costs. When you open the door of a dishwashing machine once a cycle has finished the steam comes out the open door, however with the Heat Recovery unit installed on top of the machine; this takes the steam up and condenses it out the top instead. It is always best to check with your local council on what is required in your area.

Benefits

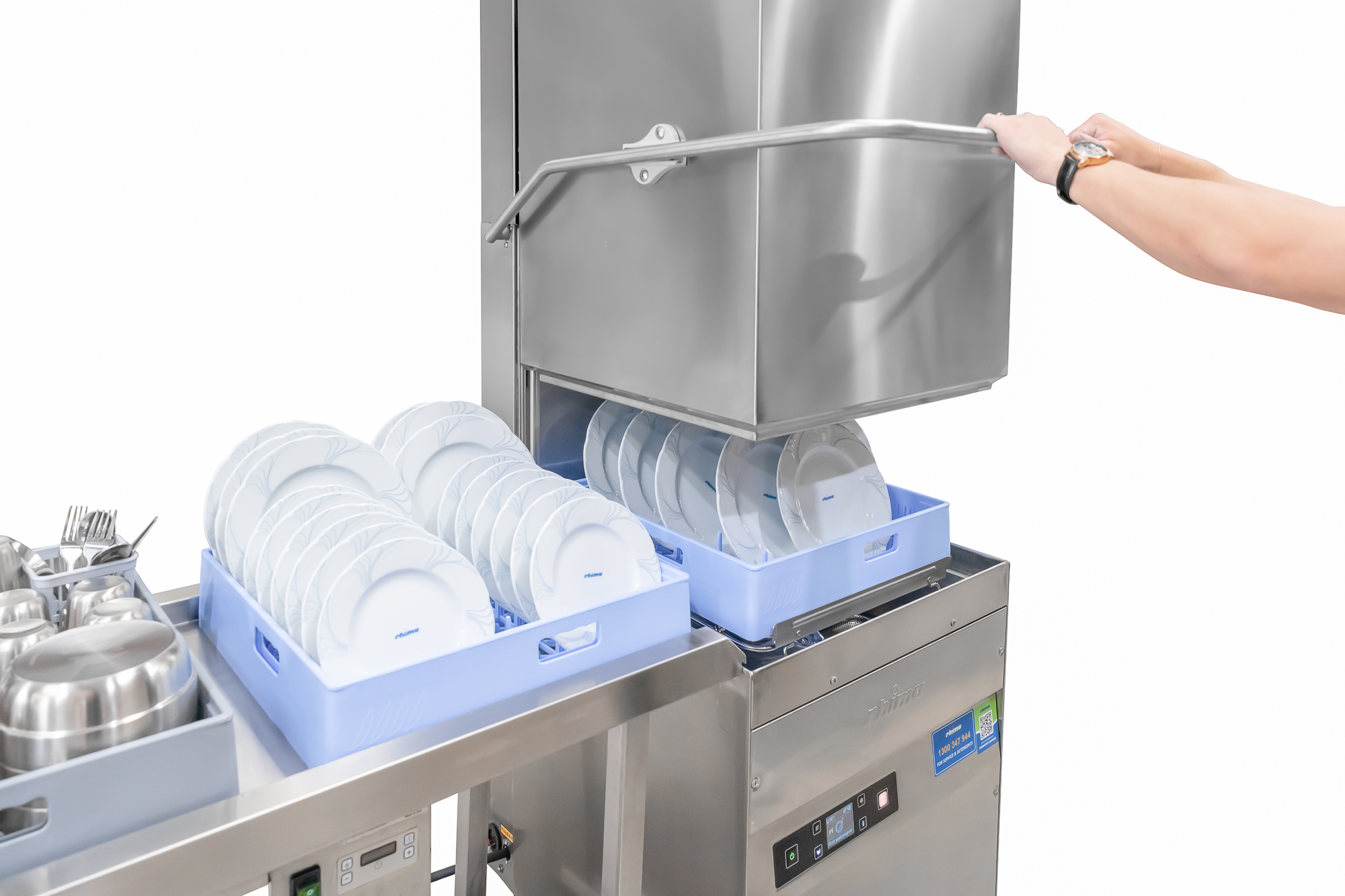

Hood operated start/stop functions which means that if you push the handle down the machine starts its cycle and if you lift the handle up, the machine stops its cycle.
At the end of the wash cycle the start key flashes between green and blue making it easy to identify during peak periods
Double walled hood so less heat escapes and the machine is not hot to touch

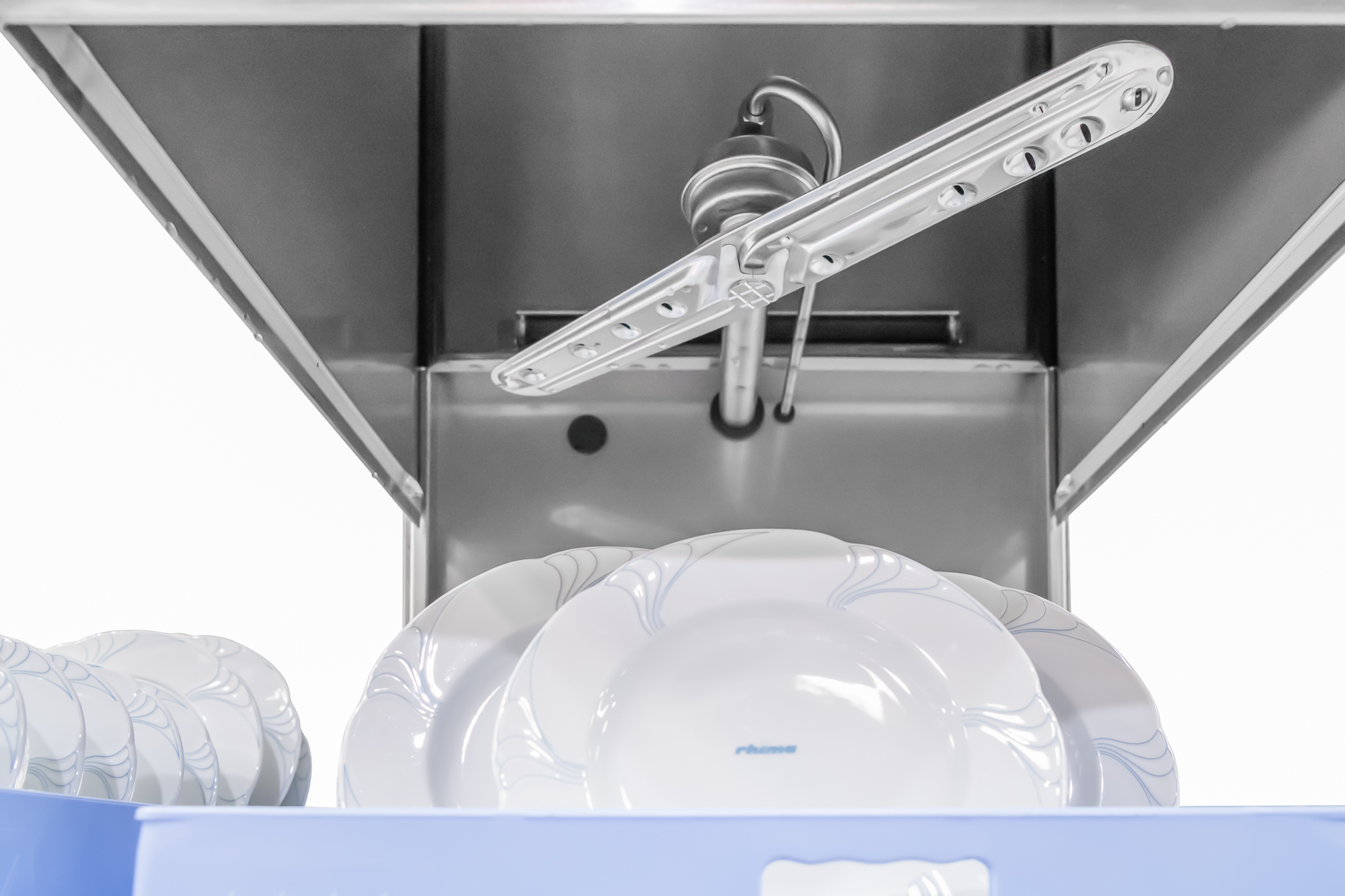

Self-cleaning cycle and self-cleaning wash jets so that cleaning the machine is very easy
Soft touch panel with multichromatic start key and read out display keeps you informed of the machine’s status.
Any faults are immediately shown on the screen via the self-diagnostic program so the machine will tell you where the fault is
Thermostop which is a safety system that ensures the machine has reached the correct temperatures before completing the cycle in order to comply with HACCP guidelines
Door safety switch fitted so that the machine cannot be opened mid cycle
Built in rinse aid injector so that the chemicals connected to the machine are automatically dosed and injected into the wash cycle of the machine
Break tank system that stops the dirty water from leaking back into the clean wash water
Automatic drain pump that allows the machine to drain by itself
Cycle run time indicator which shows how much time is left for a cycle
Four cycles pre-set to 50/90/120/180 and 300 seconds
Low water consumption (approximately 2.6ltrs per cycle)
AISI304 Stainless Steel design
Built in drain pump, so that the machine can be installed in places where the actual waste connection is above the machine outlet point (max height of 50cm).
